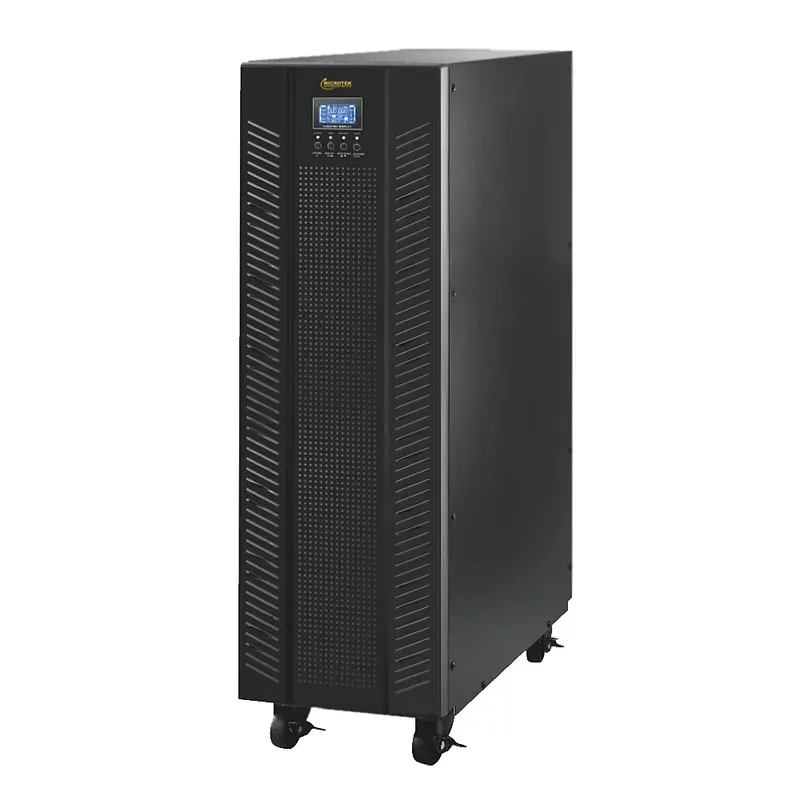

MICROTEK ONLINE UPS 6KVA 1PH:1PH 192V MAX+

5.0(43)

Based on customer reviews from Google & IndiaMART

SKU: 899-601-6001

In Stock

Wait! Add this to your cart right now to see your offer price — ₹68,557 (after automatic discount)

₹70,557₹1,17,595Save 40%

Inclusive of all taxes (GST included)

Qty
1

Check Delivery to Your Area

WhatsApp Order

Chat with us today for the best deals, expert advice & quick support

9 AM – 6 PM Daily

Chat Now

What You Get from Satyajan Energy

Free Delivery

Across South India

Expert Installation

By certified technicians

Paperless Warranty

Digital warranty registration

GST Invoice Included

Official tax invoice

Direct WhatsApp Support

+91 8019179159

Authorized Microtek Channel Partner

Genuine products guaranteed

About This Product

Microtek Online UPS 6KVA 192V Max+ When your business operations, large-scale data networks, and heavy commercial systems demand zero electrical downtime, mid-range backup systems simply cannot handle the load. The MICROTEK ON LINE UPS 6KVA 1PH:1PH 192V MAX+ is an ultra-high-capacity, industrial-grade 6KVA Online UPS driven by state-of-the-art double-conversion technology and high-grade IGBTs. Designed to operate on a high-voltage 192V external battery bank, it completely isolates your most critical machinery from erratic grid lines and delivers absolute zero transfer time.

CAPACITY

6000VA/4800W

DC VOLTAGE

Default= 192DC Adjustable= 216VDC & 240 VDC

PHASE

1 PHASE IN ~ 1 PHASE OUT

Key Highlights

Corporate Office Complexes & IT Hubs: Seamlessly runs massive rows of computer workstations, centralized network firewalls, and active multi-user servers together.

Hospitals & Advanced Laboratories: Provides highly stable, medical-grade power protection to heavy diagnostic scanning gear, medical monitors, and lab testing arrays.

Commercial Establishments & Banks: Powers extensive network hubs, multiple automated ATM cash counters, retail display tracks, and back-office servers.

High-Capacity Security Stations: Safely supports centralized command rooms managing heavy NVR setups, storage arrays, and dozens of connected PoE security cameras.

Product Features (6)View details
  • With its industrial continuous output capacity, this heavy-duty double-conversion system comfortably drives full-scale corporate and technical assets:

  • 3 to 4 Full-Size Server Racks + Primary Firewalls + Main Gateways

  • 15 to 20 Complete Desktop PC Workstations with active LED Monitors

  • 1 Central Security Control Room (Multiple NVRs + up to 128 Security Cameras)

  • Heavy Medical Diagnostics or Laboratory Analyzing Machinery

  • Complete Retail Checkout Rows (Multiple POS counters, billing terminals, and scanners)

Specifications (30)View details
CAPACITY6000VA/4800W
DC VOLTAGEDefault= 192DC Adjustable= 216VDC & 240 VDC
PHASE1 PHASE IN ~ 1 PHASE OUT
NOMINAL VOLTAGE208/220/230/240 VAC
VOLTAGE RANGE110~300VAC + 3% at 50% Load 176~300VAC + 3% at 100% Load
FREQUENCY RANGE 46~54 Hz
POWER FACTOR> 0.99 @ 100% Load
TOTAL HARMONIC DISTORTION THD(!)<4% @ 100% Load <6% @ 50% Load
OUTPUT POWER FACTORDefault = 0.8, Optional = 0.9 with Battery, 1 With 20-Battery
NOMINAL VOLTAGE280*/220/230/240 VAC
AC VOLTAGE REGULATION+ 1% (Battery Mode)
FREQUENCY RANGE46~54Hz (Synchronized Range) 50Hz + 0.1 Hz (Battery Mode)
CURRENT CREST RATIOCURRENT CREST RATIO3:1 (Max)
HARMONIC DISTORTION< 1% THD (Linear Load) : < 4% THD (Non-Linear Load)
OVERLOAD CAPABILITYAC MODE : 100%-110% : 10 Min ; 110%-120%: 5 Min ; >130% : 10 Sec
AC MODE TO BATTERY MODEZERO
INVERTER TO BYPASSZERO
WAVEFORM (BATTERY MODE)PURE SINE WAVE
EFFICIENCYAC MODE: 94% , BATTERY MODE: 91%
BATTERY TYPEVRLA / SMF
NUMBERS OF BATTERYDefault: 16 Nos. - Adjustable: 18 & 20 Nos.
CHARGING CURRENT (MAX.)4.0 A
CHARGING VOLTAGE(13.65 VDC x Battery Number) + 1%
DIMENTIONS PRODUCT (LxWxH) 555x250x830 (in mm)
NET WEIGHT PRODUCT (Kgs) 32.5 Kgs.
OPERATING HUMIDITY / TEMP. 20-90% RH & Non-Condersing / 0.40°C
NOISE LEVELLess Than 55dB @ 1 Meter
LCD INDICATIONUPS Status, Load Leval, Battery Level, Input/Output Volate, Input/Optpur Freq. / Discharge Timer / Fault Status
SMART RS-232 OR USB Supports Windows® 2000/2003/XP/Vista/2008/7/8/10 Linux & Mac
OPTIONAL SNMP Power Management From SNMP Manager and Web Browser

Category: ONLINE UPS

What is an Online UPS and Why Do You Need One?

Imagine your computer or office server is a fragile glass vase. The electricity coming from your wall socket is like a water hose—sometimes it flows smoothly, but often it splashes, sprays too hard, or suddenly stops.

A Normal UPS lets that rough water flow straight through to your vase, only stepping in with a bucket when the water cuts out completely.

An Online UPS, however, acts like a filter tank. It catches all the rough water first, cleans it, and pours a steady, gentle stream into your vase 100% of the time.

How Does it Work? (In 1 Simple Sentence)

An Online UPS constantly runs your equipment on battery power while continuously recharging itself from the wall socket. Because your devices never touch the raw electricity from the wall, a sudden power cut causes absolute zero delay. Your computer won't even blink.

An Online UPS, on the other hand, never rests. It uses a technology called "Double Conversion." Here is how it works in plain English:

  • First Conversion (AC to DC): Incoming raw electricity from your wall socket is immediately converted into Direct Current (DC) to charge the internal batteries.
  • Second Conversion (DC to AC): The UPS then instantly takes that DC power and recreates a brand-new, perfectly stable, clean AC electricity wave to power your devices.

Because your equipment is always running on the power generated fresh from the battery/inverter setup—and never directly from the erratic wall socket—there is zero transfer time if a blackout hits. To your electronics, the power never even blinked.

Quick Comparison: Online UPS vs. Regular UPS

FeatureRegular / Offline UPSOnline UPS (Double Conversion)
How it handles powerPasses grid power directly; switches to battery only during an outage.Constantly converts power (Grid → Battery → Device) 100% of the time.
Switching DelayHas a brief delay (2 to 10 milliseconds).Zero delay (0 ms) — absolute seamless continuity.
Power QualityBasic protection; passes minor voltage swings through.Delivers completely purified, stable voltage and frequency.
Best Suited ForHome PCs, routers, basic electronics.Servers, medical tools, high-end workstations, industrial electronics.

Who Needs an Online UPS?

While a standard offline backup is usually fine for a home television or a basic desktop, an Online UPS is essential for environments where failure is simply not an option:

  • Businesses & Offices: Server rooms, data centers, and local computers running critical billing or management software.
  • Medical & Laboratories: Sensitive diagnostic machines, lab testing kits, and patient-monitoring tools where precision matters.
  • Work-from-Home Professionals: Programmers, stock traders, and creators handling critical projects who cannot afford sudden system crashes or data corruption.
  • Security Systems: Heavy-duty CCTV control rooms and automated entry gates that require 24/7 uninterrupted uptime.

Why Choose a Microtek Online UPS? (Key Benefits)

Investing in an online UPS offers several powerful advantages that standard power backups simply cannot match:

  • Zero Power Interruption (True Double Conversion): Unlike normal inverters that take a few milliseconds to switch on during a power cut, a Microtek Online UPS provides zero transfer time. It continuously runs your equipment on battery power, meaning computers and servers never restart or lose data.
  • Complete Protection from Bad Power: It filters out voltage spikes, severe fluctuations, and electrical noise, delivering completely stable electricity to keep sensitive IT and medical equipment completely safe.
  • In-Built Isolation Transformer: Many Microtek Online UPS models come with built-in isolation transformers that block dangerous electrical surges and heavy noise, adding an extra shield of safety for expensive hardware.
  • Smart Display & Generator Compatible: Features a clear digital LCD screen for real-time monitoring and is fully compatible with diesel generators for seamless backup switching in offices, shops, and clinics.

Summary

If your daily work or operations involve equipment that is sensitive, expensive, or vital to your livelihood, a Microtek Online UPS is a smart, future-proof investment. It replaces the stress of sudden power crashes with total peace of mind, ensuring your systems stay safe, stable, and running smoothly around the clock.
