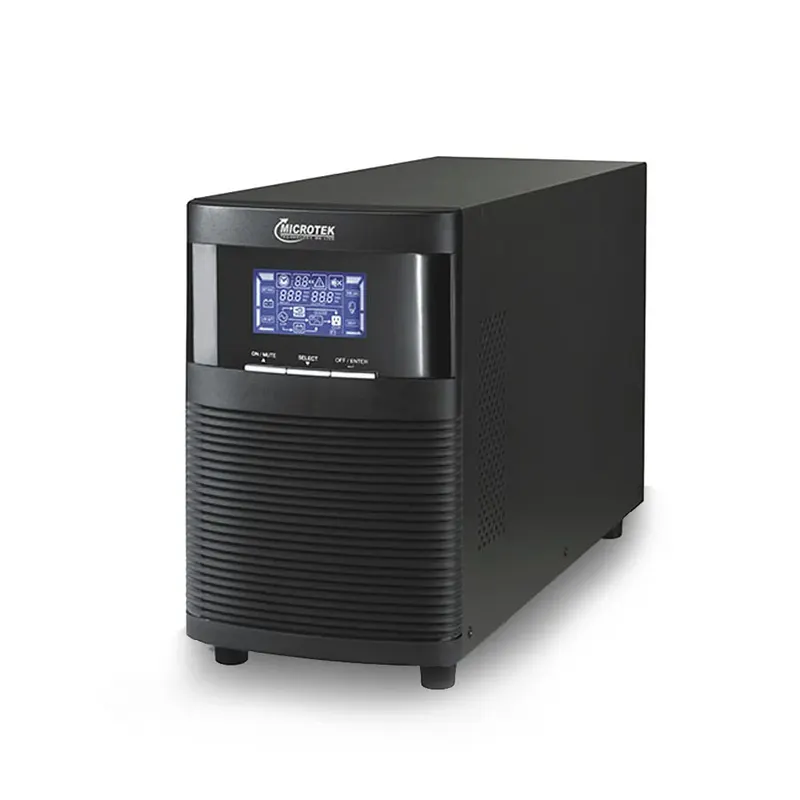

MICROTEK ON LINE UPS E² Series 1KVA 24VDC-IB

MICROTEK ON LINE UPS E² Series 1KVA 24VDC-IB

SKU: 899-581-1001

₹17,331

Select Tenure

Down Payment

0% — ₹0
₹025%50%

Monthly EMI

₹2,889/month

for 6 months

✓ No Cost EMI

Loan Amount

₹17,331

Total Interest

₹0 (Free!)

Total Payable

₹17,331

Available on

HDFC BankICICI BankSBI CardAxis BankKotak BankYes Bank

EMI is processed at checkout via your bank/card. No-cost EMI means 0% interest — the discount is pre-adjusted in the price. Final EMI is subject to bank approval.

About This Product

Microtek High Frequency Online UPS provides Uninterrupted Pure Power for Critical Applications such as Computer Network, Servers, Cyber Cafes, ATM Machines and CCTV Camera etc. E2 Series Ensures Syschronization of the hardware, Software, analytics and ongoing services to ensure its customers vital applications run continously, perform optimally as per the requirement. this series is based on high frequency dobule convertion IGBT technology with static bypass which improves reliablility and operates with configurable output voltage settings. Model Name: Online UPS E²-IB Rated Capacity: 1 KVA / 800 Watts Phase: Single Phase In, Single Phase Out DC Voltage: SMF 12V / 9AH x 2 Nos. (IN-BUILT BATTERIES) Advantages of using Microtek Online UPS Emergency Power Supply: - Whenever there is a power outage or shutdown, the UPS stands as a reliable and reliable power source. You can continue your work by using UPS or Batteries in the uncertain state of remote power disconnection. Protects the Voltage Sensitive Device from Bad Electricity: - You can detect power fluctuations in variable power leading to damage to the gadgets. The uninterruptible power supply provides stable output by controlling power fluctuations. Provides Surgical Protection: - In the event of a power outage, UPS detects improper power supply and stops direct power supply. Then it gives us stable energy from its stock. It prevents the cause of damage to the devices due to power supply interruptions. Battery Life Save: - You can continue working in operating mode even when the power is off as it keeps charging every time you connect the UPS to the battery.

Inquire Now

MODEL NAME / NUMBER

ONLINE UPS E²-IB / NM24EM1KK11-IB

CAPACITY

1KVA/800V

DC VOLTAGE SYSTEM

24 VDC

Key Highlights

Inbuilt OVCD (Over Voltage Cut-Off Device) with Surge Protection.

Static Bypass-improves Reliability & Alarm (Optional) for Mute Mode

Smart LCD Display for Real-time information.

Product Features (2)

  • SNMP Card (Optional) on demand.

  • EMI Noise Filter With Isolation Transformer (Optional).

Specifications

MODEL NAME / NUMBER ONLINE UPS E²-IB / NM24EM1KK11-IB
CAPACITY 1KVA/800V
DC VOLTAGE SYSTEM 24 VDC
INPUT VOLTAGE RANGE 110VAC+5% - 300VAC+5%
Frequency Range40Hz - 70Hz
PHASESINGLE PHASE WITH GROUND
POWER FACTOR>0.99 @ FULL LOAD
OUTPUT VOLTAGE 200/ 208/ 220/ 230/ 240VAC
AC VOLTAGE REGULATION +1% (Battery Mode)
FREQUENCY RANGE (Battery Mode)50Hz+0.25Hz OR 60Hz+0.3Hz
CURRENT CREST RATIO 3:1
HARMONIC DISTORTION <2% THD (Linear Load) 4% THD (N on-Linear Load)
OVERLOAD CAPABILITY 105%-110%: UPS SHUTS DOWN AFTER 10 MINUTES AT BATTERY MODE OR TRANSFER TO BYPASS WHEN THE UTILITY IS NORMAL. 110%-130%: UPS SHUTS DOWN AFTER 1 MINUTE AT BATTERY MODE OR TRANSFER TO BYPASS WHEN THE UTILITY IS NORMAL. >130%: UPS SHUTS DOWN AFTER 3 SECONDS AT BATTERY MODE OR TRANSFER TO BYPASS WHEN THE UTILITY IS NORMAL.
TRANSFER TIME AC MODE TO BATTERY MODE 0/ INVERTER TO BYPASS: <4ms (Typical 2.5ms)
WAVEFORM (Battery Mode) PURE SINEWAVE
EFFICIENCY (AC MODE / BATTERY MODE) 88% / 83%
BATTERY TYPE & NUMBERS SMF 12V / 9AH X 2 Nos. (In-Built Batteries)
CHARGING CURRENT 1A
DIMENTION (LxWxH) 282x145x220 mm
NET WEIGHT9.8 KGS
OPERATING HUMIDITY / TEMP. 20-95% RH @ 0-40°C (N on-Condensing)
NOISE LEVELLESS THAN 50dBA @ 1 METER (WITH FAN SPEED CONTROL)
DISPLAYLCD DISPLAY INDICATIONS
SNMP (OPTIONAL) POWER MANAGEMENT FROM SNMP MANAGER & WEB BROWSER

Category: ONLINE UPS
