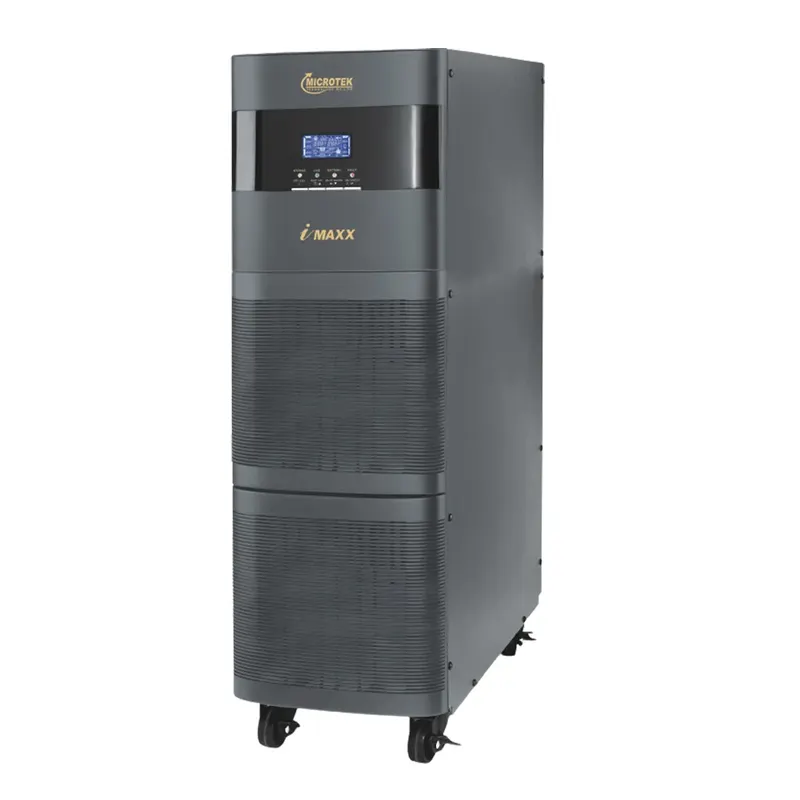

MICROTEK ON LINE UPS 5.5KVA, 1ph: 1ph, 192V iMAXX SERIES
SKU: 899-611-5501
₹79,501Select Tenure
Down Payment
0% — ₹0Monthly EMI
₹13,250/month
for 6 months
✓ No Cost EMILoan Amount
₹79,501
Total Interest
₹0 (Free!)
Total Payable
₹79,501
Available on
EMI is processed at checkout via your bank/card. No-cost EMI means 0% interest — the discount is pre-adjusted in the price. Final EMI is subject to bank approval.
About This Product
Microtek offers Wide Range of Online UPS from 1KVA to 40KVA based on World’s Latest Technology to meet the harsh Environmental and worst Power Conditions for Applications from Small Office requirement to Space Critical Missions with wide variety of Backup Range from 5 minutes to 10 hours to meet the needs of every individual.
MODEL
i-MAXX TRANSFORMER BASED ONLINE UPS
CAPACITY
5.5 KVA / 4.4 KW
DC VOLTAGE SYSTEM
DEFUALT : 192 VDC, ADJUSTABLE : 216 VDC
Key Highlights
DSP Technology with IGBT Based Inverter.
Inbuilt OVCD (Over Voltage Cut-Off Device) With Surge Protection.
Smart LCD Display for Real-Time Information.
Product Features (2)
EMI/RFI Noise Filter.
CVCF (Constant Voltage Constant Frequency) Operational Without Battery.
Specifications
| MODEL | i-MAXX TRANSFORMER BASED ONLINE UPS |
| CAPACITY | 5.5 KVA / 4.4 KW |
| DC VOLTAGE SYSTEM | DEFUALT : 192 VDC, ADJUSTABLE : 216 VDC |
| PHASE | SINGLE PHASE WITH GROUND |
| NOMINAL VOLTAGE | 208VAC / 220VAC / 230VAC |
| ACCEPTABLE VOLTAGE RANGE | 165~285 VAC |
| FREQUENCY RANGE | 40Hz~55Hz @50Hz System |
| NOMINAL VOLTAGE | 208VAC / 220VAC / 230VAC |
| AC VOLTAGE REGULATION | +1% (BATTERY MODE) |
| FREQUENCY RANGE | Mains Mode (Syncronized Range) : 45Hz~55Hz, Battery Mode : 50Hz~0.1Hz |
| AC to DC MODE | ZERO |
| INVERTRE to BYPASS MODE | ZERO |
| BYPASS TO INVERTER MODE | <5ms |
| BATTERY MODE | PURE SINEWAVE |
| AC MODE / BATTERY MODE | 87%/91% |
| RECOMMEDED BATTERY TYPE | DEFAULT: VRLA/SMF Battery TUBLAR BATTERY : OK (With Charger Cut-Off Voltage Ajustable From LCD Display) |
| BATTERY CHARGING AMP. | 2/4/8 AMP. (Default:8 AMP) |
| No. OF BATTERIES | 16/18 Batteries |
| LCD DISPLAY | Load Leval, Battery Leval, AC Mode, Battery Mode, Bypass Mode & Fault Indicators. |
| ALARM | BATTERY MODE: Sounding every 4sec, LOW BATTERY: Sounding every second, OVERLOAD: Sounding twice every sound, FAULT:Continuously Sounding. |
| RS-232 / USB & OPTIONAL SNMP | Supports Windows® 2000/2003/XP/VISTA/2008/7/8, LINUX and MAC |
| DIMENTIONS PRODUCT (LxWxH) | 562x250x830 (in mm) |
| NET WEIGHT PRODUCT (Kgs) | 62.0 KGS |
Category: ONLINE UPS
