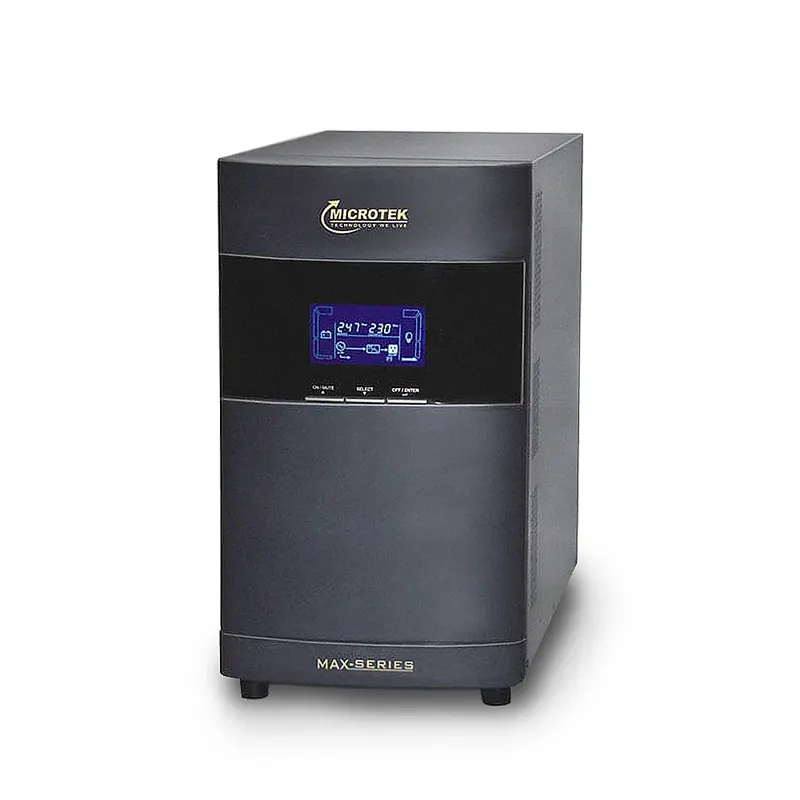

MICROTEK ON LINE UPS 3KVA 1PH:1PH 72V-IB MAX+
SKU: 899-711-3001
₹40,812Select Tenure
Down Payment
0% — ₹0Monthly EMI
₹6,802/month
for 6 months
✓ No Cost EMILoan Amount
₹40,812
Total Interest
₹0 (Free!)
Total Payable
₹40,812
Available on
EMI is processed at checkout via your bank/card. No-cost EMI means 0% interest — the discount is pre-adjusted in the price. Final EMI is subject to bank approval.
About This Product
Microtek High Frequency Online UPS 3KVA 1PH:1PH 72V-IB(In-Built Batteries) MAX+ provides Uninterrupted Pure Power for Critical Applications such as Computer Network, Servers, Cyber Cafes, ATM Machine, Labs etc. MAX+ Online UPS Series system, commonly called the Double conversion system, begins by converting AC power to a stable DC, and then converts back to AC, in order to maintain a significant load, with a stable sinusoidal output, from the input line via AC. / DC converter, or from batteries if power fails. Rated Capacity: 3 KVA / 2700 Watts Phase: Single Phase In, Single Phase Out DC Voltage: 72V (7AH/12V * 6 Nos Battery inside) Advantages of using Microtek Online UPS Emergency Power Supply: - Whenever there is a power outage or shutdown, the UPS stands as a reliable and reliable power source. You can continue your work by using UPS or Batteries in the uncertain state of remote power disconnection. Protects the Voltage Sensitive Device from Bad Electricity: - You can detect power fluctuations in variable power leading to damage to the gadgets. The uninterruptible power supply provides stable output by controlling power fluctuations. Provides Surgical Protection: - In the event of a power outage, UPS detects improper power supply and stops direct power supply. Then it gives us stable energy from its stock. It prevents the cause of damage to the devices due to power supply interruptions. Battery Life Save: - You can continue working in operating mode even when the power is off as it keeps charging every time you connect the UPS to the battery.
MODEL
NM72MX3KK11-IB
RATED CAPACITY
3 KVA / 2700 Watts
INPUT VOLTAGE RANGE (Load <50%)
118 ~ 295 V (± 5 V)
Key Highlights
High Frequency and Double Conversion Online Technology. High End IGBT Based
High Frequency and Double Conversion Online Technology. High End IGBT Based.
High End Micro Controller Based.
Product Features (2)
Wide Input Voltage Range
Advanced PFC Technology
Specifications
| MODEL | NM72MX3KK11-IB |
| RATED CAPACITY | 3 KVA / 2700 Watts |
| INPUT VOLTAGE RANGE (Load <50%) | 118 ~ 295 V (± 5 V) |
| INPUT VOLTAGE RANGE (Load >50%) | 160 ~ 295 V (± 5 V) |
| FREQUENCY | 40 ~ 70 Hz |
| PHASE | Single Phase with Ground |
| POWER FACTOR | ≥ 0.99 @ full load |
| OUTPUT VOLATGE RANGE | 208 / 220 / 230 / 240 V AC |
| FREQUENCY RANGE (Synchronized Range) FREQUENCY RANGE (Battery Mode) | 47 ~ 53 Hz or 57 ~ 63 Hz 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
| THD (Linear Load) | ≤2% |
| THD (Non Linear Load) | ≤4% |
| OVERLOAD | >110%, 30s turn to Bypass Mode >150% instant turn to Bypass |
| CREST FECTOR | 3:1 (Max) |
| SHORT CIRCUIT PROTECTIONS | 5 cycles turn Off Inverter, no transfer to Bypass, provide Alarm (AC Mode), 5 cycles turn Off Inverter, provide Alarm(Battery Mode), Input Fuse blown or Breaker action |
| WAVEFORM | PURE SINEWAVE |
| TRANSFER TIME (AC Mode to Battery Mode) (Inverter to Bypass) | ZERO <4 ms |
| EFFECIENCY | 85%~ 92% |
| DC VOLTAGE | 72 V(7 AH* 6 Nos. Battery inside) |
| CHARGE CURRENT | 1.5 Amps |
| COMMUNICATION INTERFACE | RS232,SNMP (Optional) |
| INDICATION | LCD Display |
| NOISE LEVAL | Less than 50dBA @ 1 Meter (With Fan Speed Control) |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
| WARRENTY | Two Years on Electronics & One Year on Battery |
Category: ONLINE UPS
