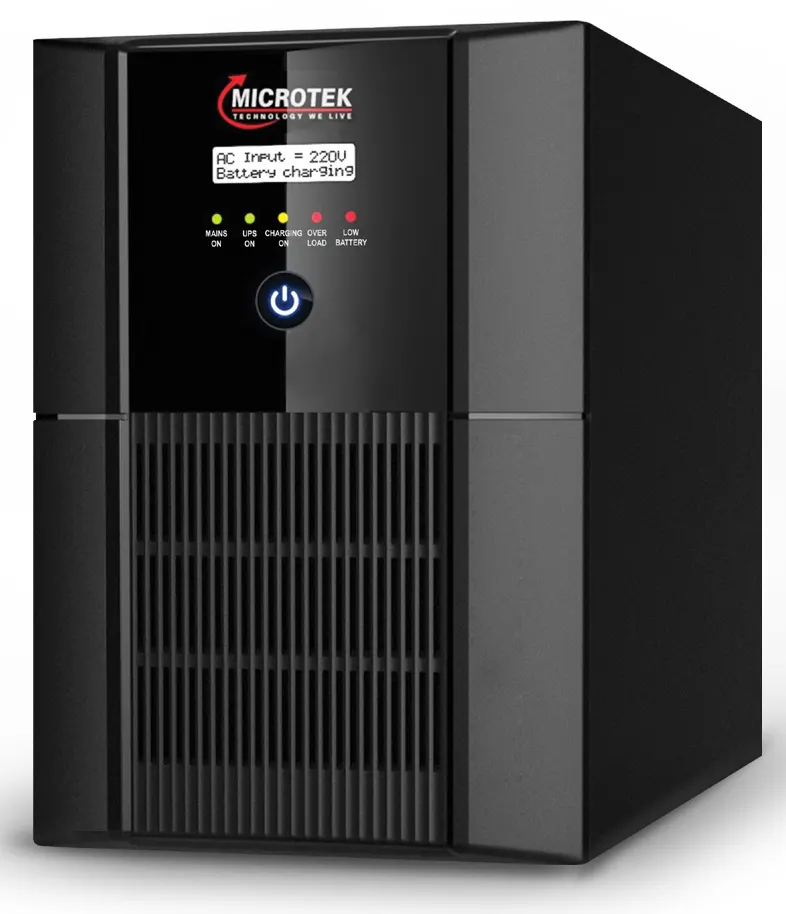

MICROTEK JUMBO UPS - JM SW 4000+/48V
SKU: 899-101-4000
₹20,300Select Tenure
Down Payment
0% — ₹0Monthly EMI
₹3,383/month
for 6 months
✓ No Cost EMILoan Amount
₹20,300
Total Interest
₹0 (Free!)
Total Payable
₹20,300
Available on
EMI is processed at checkout via your bank/card. No-cost EMI means 0% interest — the discount is pre-adjusted in the price. Final EMI is subject to bank approval.
About This Product
Microtek UPS JM SW 4000+/48V Working Power 3.7KVA is DSC Based Intelli Pure Sinewave Jumbo UPS Model for Small Offices and Home Applications which ensures Noiseless, Safe and Efficient Performance. It is DSC based Intelligent Control Design using latest state-of-the art Technology. It also comes with Additional Features like Battery Selection Mode Switch for selecting Tubular, Standard & Local Battery for Quick Charging and Longer Battery Life with Enhanced Backup.
MODEL UPS
JM SW 4000+/48V
Capacity / Rating
3.7KVA / 2960W
Standard Input Voltage
100V~280V
Key Highlights
Boost Based PWM Controlled Intelligent Multistage Battery Management Charging Technology. The input power factor maintains 0.85 which reduce the electricity bills.
Protections: Wiring Fault, Overload, Short Circuit, Battery low, Reverse Phase, Reverse Battery Protection.
Product Features (2)
DSP/High-end micro controller based PWM technology using MOSFET: DSP/High-end micro controller used where the internal digital frequency control is at a speed of as high as 40 MIPS (millions instructions per Second).
ACEC (Analog Compare Error Correction) technology based PWM for the generation of Pure Sine wave: Using ACEC technology the PWM is corrected.
Specifications
| MODEL UPS | JM SW 4000+/48V |
| Capacity / Rating | 3.7KVA / 2960W |
| Standard Input Voltage | 100V~280V |
| Narrow Input Voltage | 180V~260V |
| Output Voltage on UPS mode | 220V+10% |
| Efficinecy | >80% |
| Battery Charger | Boost Based PWM Control Multi-Stage IBM technology |
| Environmental Parameters | Operating Temprature: 0~45*C / Acoustic Noise at 1 Mtr: <60dB Relative Humidity: MAX 95% Non Condensing / Thermal Management: Integrated cooling (Fan & Heat sink) |
| Display | LCD/LED Display Indicator |
Category: High Capacity UPS
